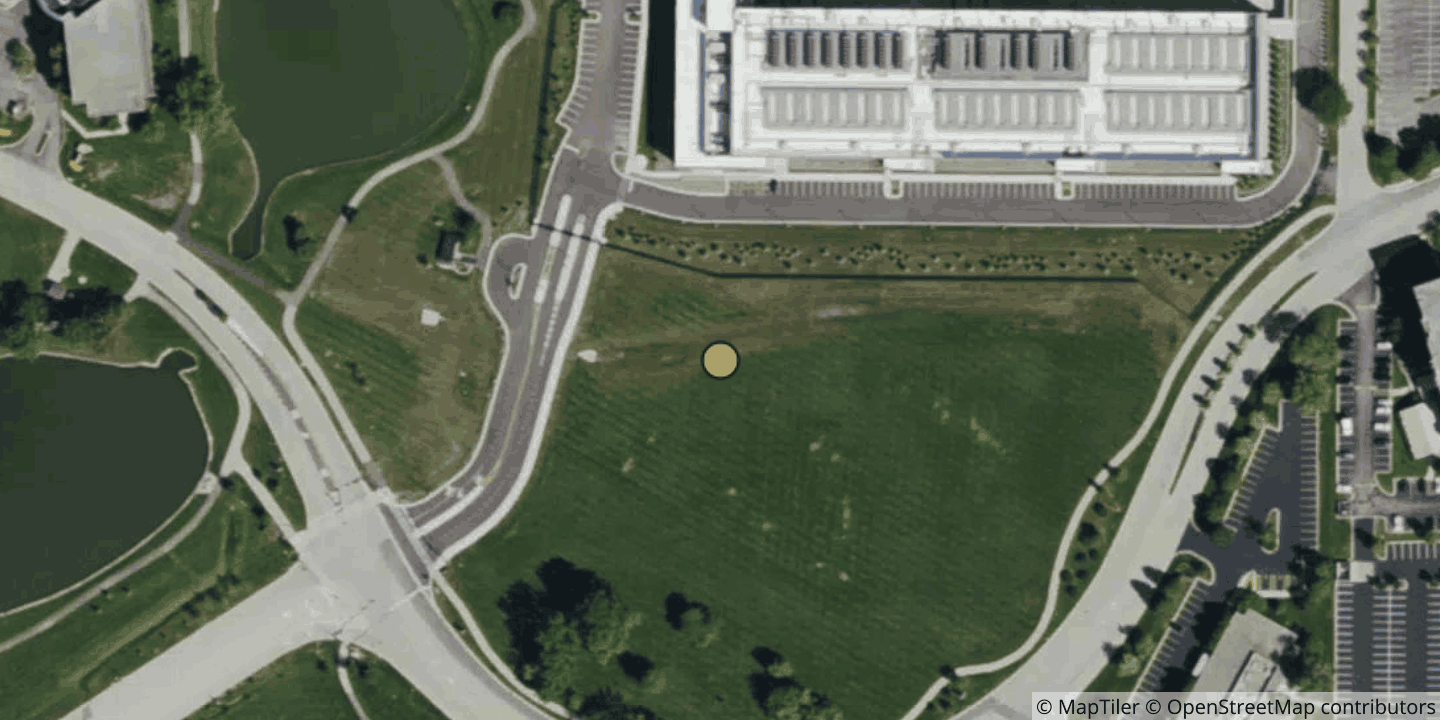

GDC - Chicago CH3 Data 'Center
NTT DATA, Inc. · Itasca · Chicago Metro · United States
- Redundancy (as published)
- "N+1 distributed redundancy for each vault"; "Five (5) x 2MW UPS modules for every 8MW capacity"; "Diverse dual-corded power distribution"; "Two primary 34.5kV utility feeds, each rated at 60 MVA"; "Generators with on-site fuel storage to support 24 hours run time at full load with 24x7x365 fuel delivery"; Cooling: "Fan coil wall cooling design with hot aisle containment and N+1 redundancy in the vault" (data sheet Chicago CH3, © 2025, PDF 08-05-2025); "32MW of critical IT load, N+1 distributed redundancy for each 8MW vault, diverse power distribution to data hall." (location page, 11-10-2026)
- Floor area
- 10,405 m² whitespace
- Security
- 24/7 on-site security
- Rack density
- 22 kW
Platform research · Recorded 11 Oct 2026 · Recent
- Density (as published)
- "Power densities available up to 22kW per rack" (data sheet Chicago CH3, © 2025)
- Power band
- 20–50 MW
Platform research · Recorded 11 Oct 2026 · Recent
- Cooling
- Air cooling, Free cooling
- Availability
- Availability on request
Imported · Recorded 08 Jun 2026 · Not recent
- Cross-connect
- On request
- Services
- Colocation, wholesale and connectivity
- Certifications 5
- ISO 27001PCI DSSSOC 2ISAE 3402LEED
Location
View on the full map · Elevation 210 m above sea level
