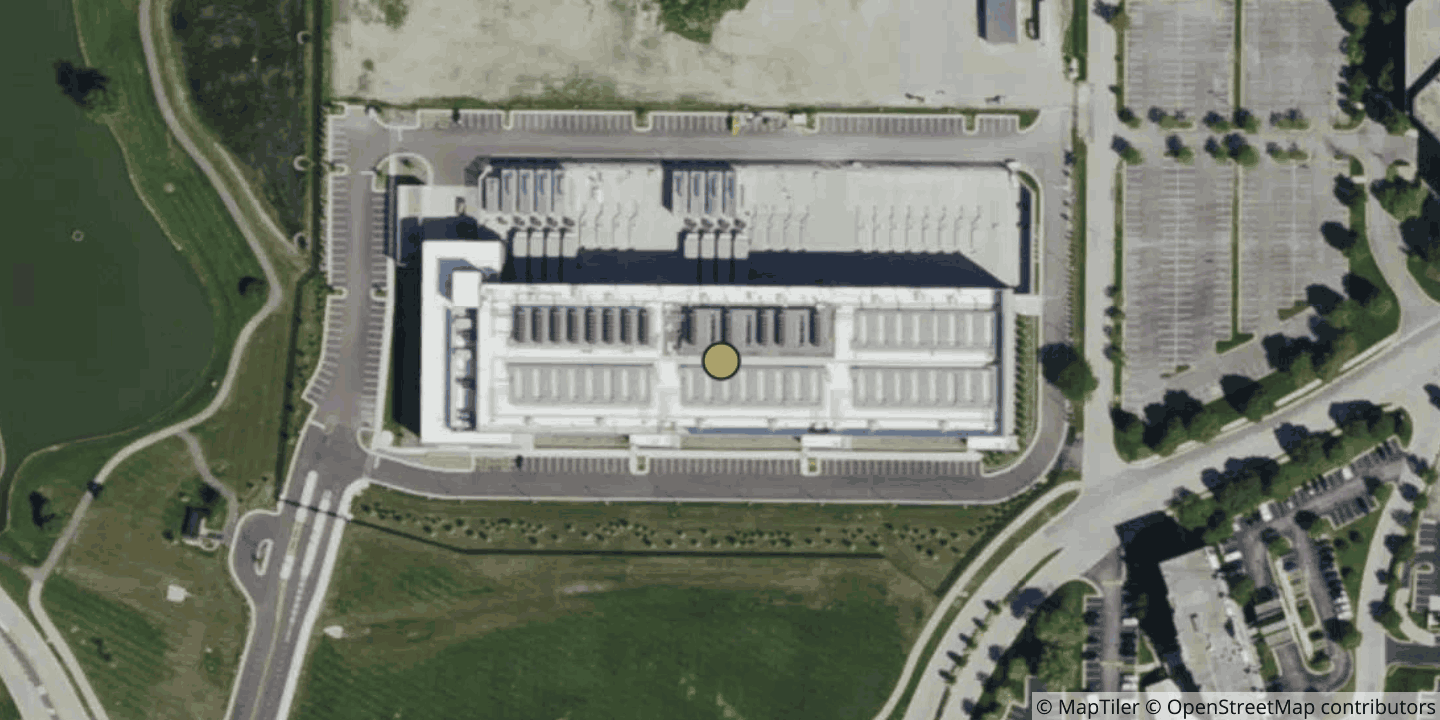

GDC - Chicago CH1 Data Center
NTT DATA, Inc. · Itasca · Chicago Metro · United States
- Redundancy (as published)
- "N+1 distributed redundancy with 4 to make 3 design"; "Eight (8) x 1MW UPS modules for every 6MW capacity"; "Dual-corded power distribution"; "Four primary 34.5kV utility feeds, plus one alternate feed"; "Generators with on-site fuel storage to support 24 hours run time at full load with 24x7x365 fuel delivery"; "Diverse power distribution to data hall (A and B feeds)"; Cooling: "Fan coil wall cooling design with hot aisle containment and N+1 redundancy in the vault" (data sheet Chicago CH1, © 2023, PDF 07-06-2024); "36MW of critical IT load, N+1 distributed redundancy for each vault, diverse power distribution to data hall" (location page, 11-10-2026)
- Floor area
- 11,705 m² whitespace
- Security
- 24/7 on-site security
- Rack density
- 22 kW
Platform research · Recorded 11 Oct 2026 · Recent
- Density (as published)
- "Power densities available up to 22kW per rack" (data sheet Chicago CH1, © 2023)
- Power band
- 20–50 MW
Platform research · Recorded 11 Oct 2026 · Recent
- Cooling
- Air cooling, Free cooling
- Availability
- Availability on request
Imported · Recorded 08 Jun 2026 · Not recent
- Cross-connect
- On request
- Services
- Colocation, wholesale and connectivity
- Certifications 6
- ISO 27001ISO 50001PCI DSSSOC 2ISAE 3402LEED
Location
View on the full map · Elevation 209 m above sea level
