Discover datacenters / United States

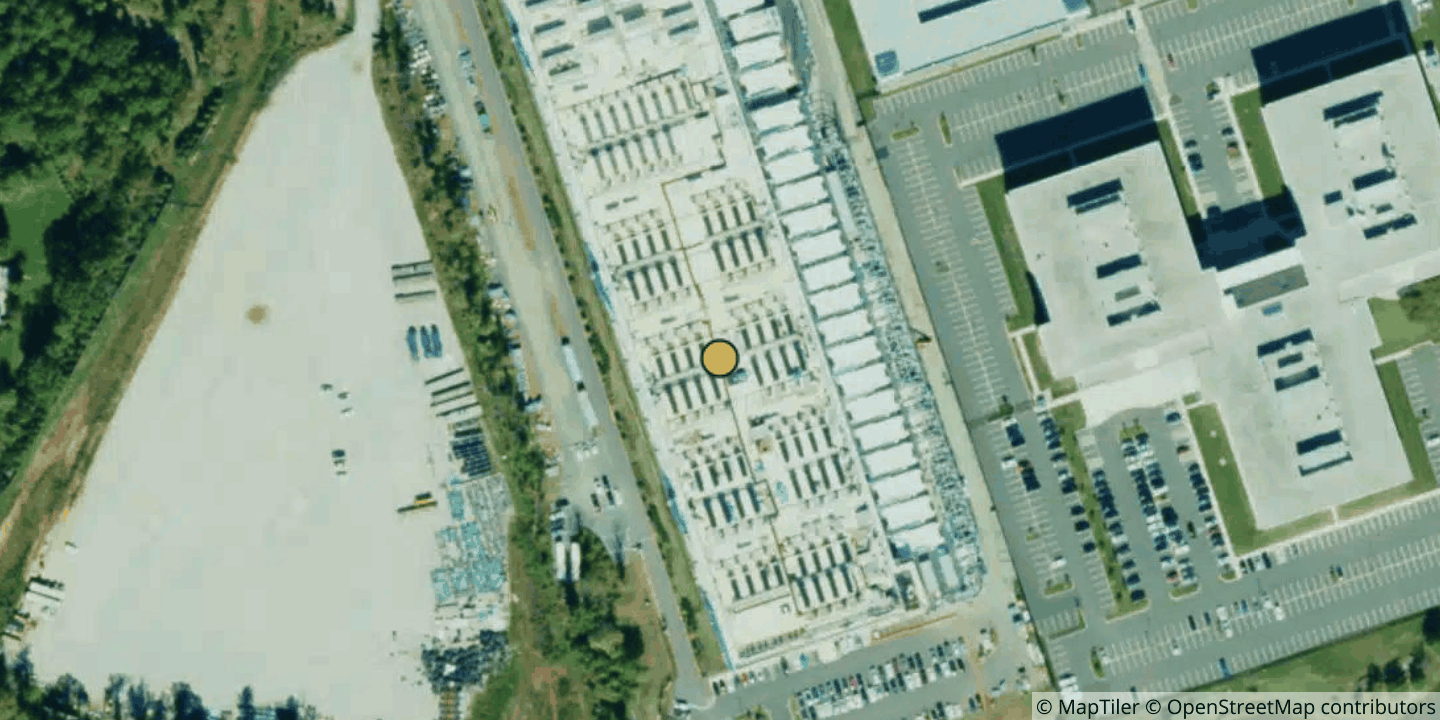

Aligned IAD-02
Aligned Data Centers · Ashburn · Northern Virginia Metro · United States
- Design resilience tier
- III
- Redundancy (as published)
- Design & facility Tier III – Ashburn hyperscale data center campus to Tier III facility and design standards (brochure IAD-01 | IAD-02, 15-02-2022) | Designed to Tier III standards (location page, IAD-02) | Whips or overhead power busways A/B-configured, flexible, and expandable (brochure 15-02-2022) | drawing redundant, critical power from two diverse 230kV Dominion substations (case study 08-12-2021); – 3 MW back-up generators – 2 MW UPS line-ups – N+1 block redundant topology – 500 KVA PDUs – 415V distribution to racks (A+B distribution); – Minimum N+1 redundancy – Closed-loop chilled water system design
- Floor area
- 47,658 m² total building
- Security
- 24/7 on-site security
- Rack density
- 1–50 kW
Platform reviewed · 26 Sept 2026 · Recent
- Density (as published)
- Variable standard and high density power (up to 50 kW per rack) (brochure IAD-01 | IAD-02, 15-02-2022) | power densities of 1-50kW per cabinet in the same footprint (case study, 08-12-2021)
- Cooling
- Air cooling
- Availability
- Availability on request
Imported · Recorded 08 Jun 2026 · Not recent
- Cross-connect
- On request
- Services
- Colocation, connectivity, high-density and wholesale
Location
View on the full map · Elevation 86 m above sea level
